| General information | |

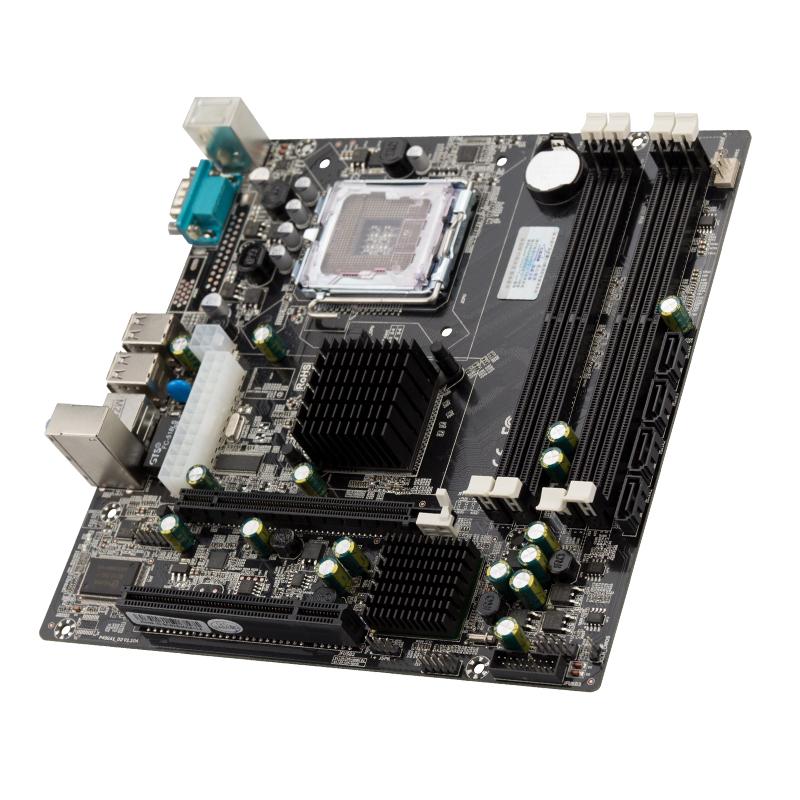

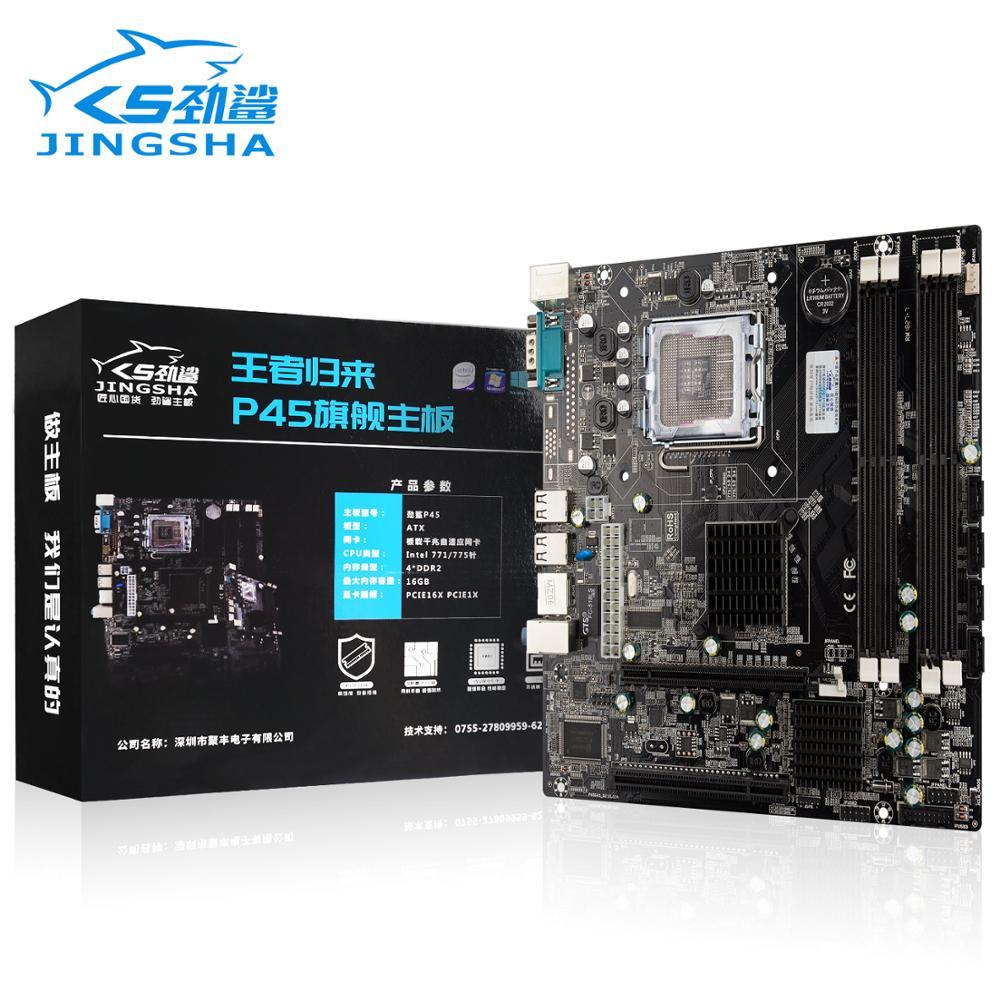

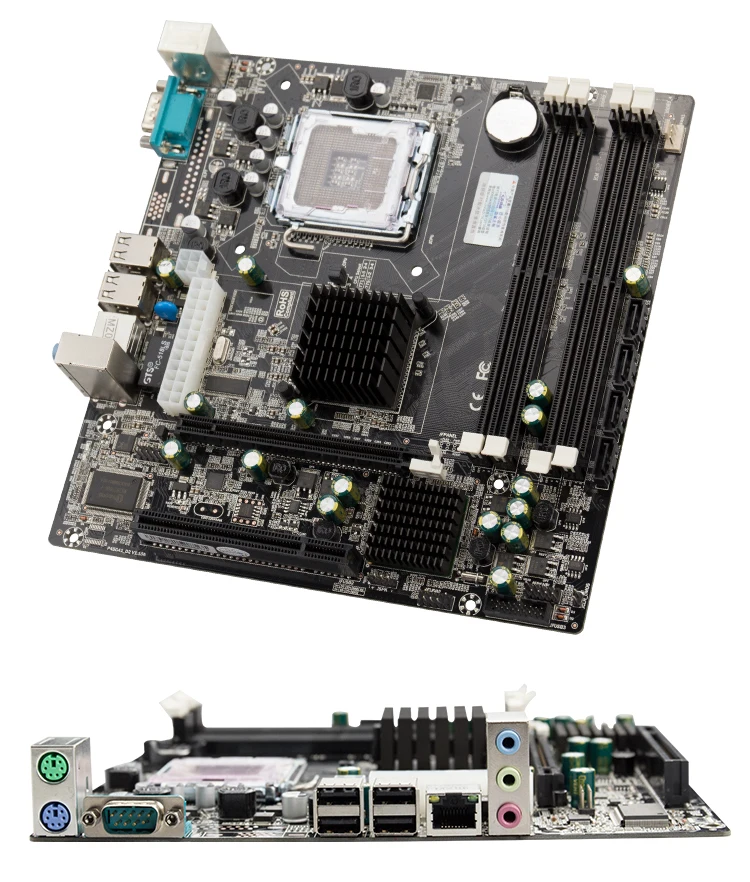

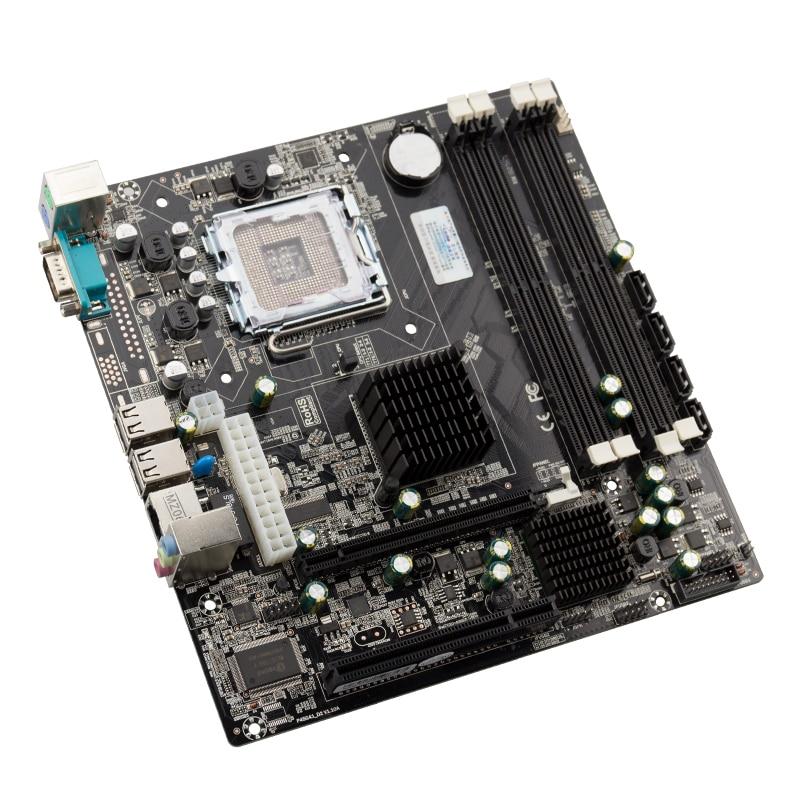

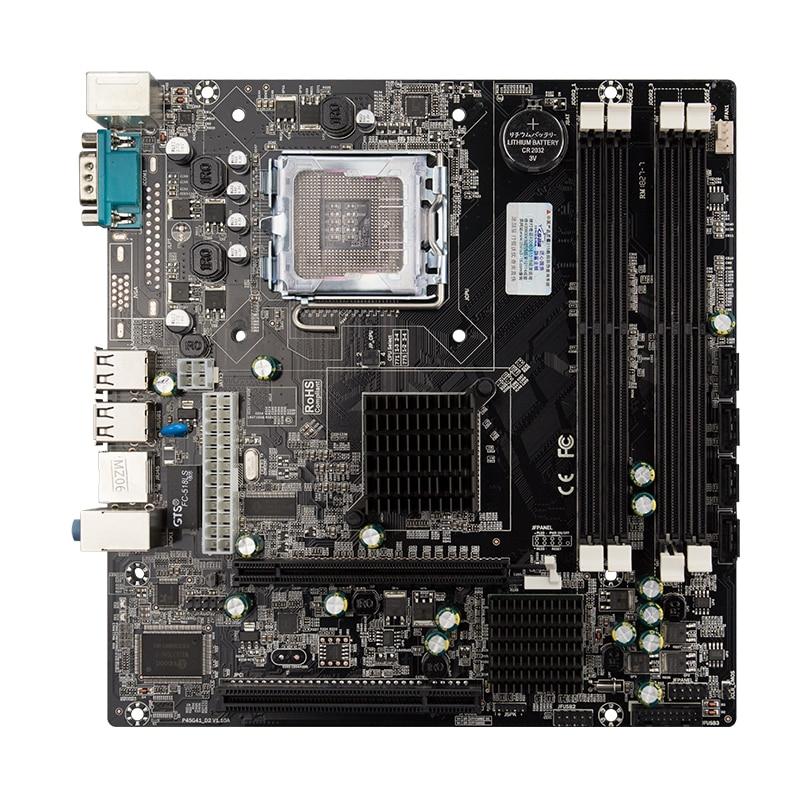

| Part# | JINGSHA P45 Motherboard |
| Chip | Intel P45 or other chipset |
| Feature | Support both LGA 775 & LGA 771 Series Processors |
| CPU | Intel® Socket 775 for Core™ 2 Duo/Core™ Duo/ Pentium™ 4/Pentium D/Celeron D Processors Intel® Socket 771 Xeon 51xx~ Xeon 54xx Processors |
| Form Factor | mATX 205mm x 210mm |
| Memory | 4* DDR2 Slot |
| Maximum RAM Capacity | 8GB |
| Graphic | 1* PCI 1* PCI-E 16X |
| Storage | 4* SATA2.0 |
| LAN | Fast Ethernet |
| Audio | Realtek Audio Codec ALC662, 5.1 Sound Channel Supported |
| USB Ports | 6* USB2.0 |
| PSU Solution | 1* 4 Pin + 1* 24 Pin Power Supply |

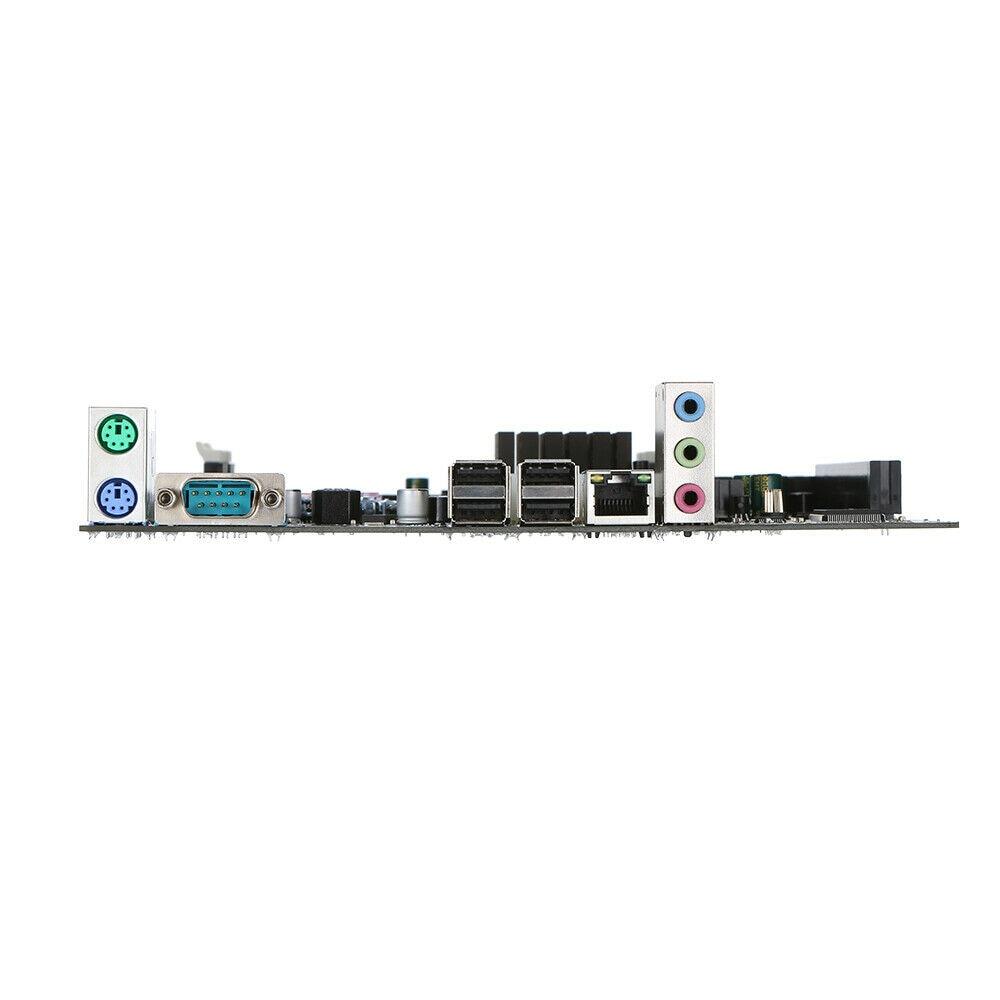

| Other | 1* COM 2* PS/2 ( 1 for mouse, 1 for keyboard) |
| Accessories | 1 x I/O Shield 1 x SATA cable |
| Warm Tips | Please Read The CPU Installation Guide (At The Bottom of This Listing) |
Our Guarantee
SZMZ Factory Direct Store is dedicated to providing our customers with the best service possible! We will continue to strive to make SZMZ Factory Direct Store your first choice for the best products and great customer service.
➊Due to different batches of productions, there might be some difference between the pictures you've seen and the product you'll get, for example, retail boxes, colors of DIMM slots, SATA ports, PCI or PCI-E slots and other ports, are subject to change without prior notice. One thing for sure is that we never compromise on the quality of our products.
➋Motherboard battery will be removed before shipment as CN post or customs has laid an embargo on battery.
➌If the parcel was broken when you signing it, please take a video of the parcel and refuse to sign it and report it to us.
If the parcel was in good condition, please sign for it directly.
➍Please take an unpacking video as evidence for any potential problem like qty short or damage on arrival (DOA).
We process and ship orders Monday – Saturday, and are unable to offer weekend or holiday delivery.
All international customs duties and fees are subject to individual country rules and regulations, and are the responsibility of the buyer. Please consult local custom office for details
Below is a general shipping guideline
Packing method may vary for other products.
➁ items will been ship out within within 1-3 business days (except National Holidays) upon full payment receipt.➂ Standard Shipping , Usually 12 - 35 or 60 days to Worldwide
➃ Expedited Shipping , via DHL /EMS . DHL : 3- 9 days , EMS : 7- 22 Days Buyer Commitment
- The buyer is responsible for ensuring compatibility,parts, accessories, etc. for this product.
- If there's any item in question,buyer must inform SZMZ Factory Direct Store as promptly as possible after the delivery date.
Return Policy
- Please do not return any items without a Return Merchandise Authorization or other instructions by us . Any packages that are sent without our knowledge will be refused and no replacements will be issued.
Thanks for looking!
