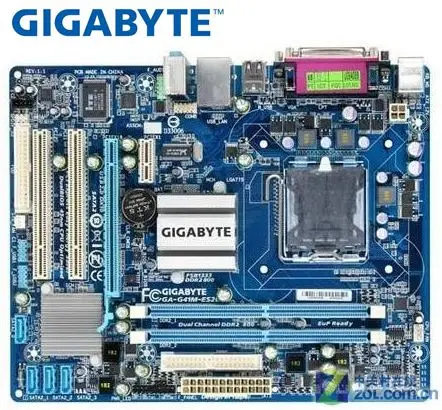

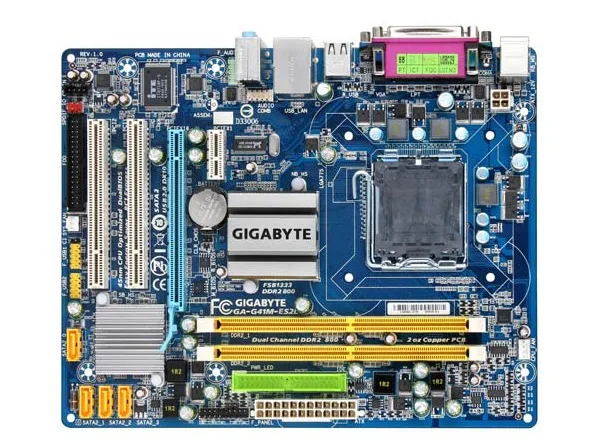

original motherboard for Gigabyte GA-G41M-ES2L DDR2 LGA 775 boards G41M-ES2L VGA USB2.0 8G G41 Desktop motherboard Free shipping
- This motherboard is used , about 90% new
- 100% tested it is working well before shipping
- maybe without CMOS battery for air transport.

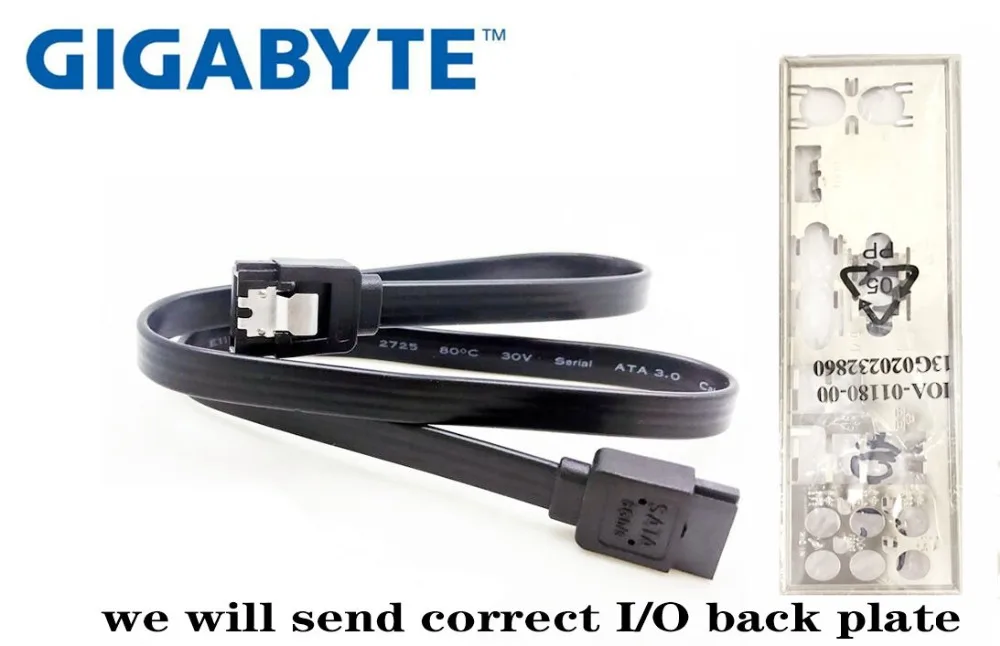

- Packing: motherboard with I/O shield back plate and sata cable.
GA-G41M-ES2L parameters
Important parameters
Main chipset: Intel G41
Audio chip: Integrated Realtek ALC888B 8-tone
Memory slot: 2 x DDR2 DIMMs
Maximum memory capacity: 8GB
Motherboard plate type: Micro ATX plate type
Dimensions: 24.4 x 19.4cm
Power socket: a 4-pin, 24-pin power connection
Power mode: three-phase
Motherboard chip
Integrated chip Graphics/sound card/network card
Main chipset Intel G41
Chipset Description Intel G41 Northbridge + ICH7 Southbridge Chipset
Display chip Integrated Intel GMA X4500 Display Core
Audio chip integrates Realtek ALC888B 8-channel audio chip
NIC Chip Onboard Realtek RTL8111C/RTL8111D(L) Gigabit LAN Card
Processor specification
CPU Type Core 2 Extreme/Core 2 Quad/Core 2 Duo/Pentium/Celeron
CPU socket LGA 775
CPU Description Supports Intel Socket 775 Interface Processor
Memory specifications
Memory Type 2×DDR2 DIMMs
Maximum memory capacity 8GB
Memory Description Supports Dual Channel DDR2 1066 (Overclocking)/800/667MHz Memory
Memory slot 2×DDR2 DIMMs
Expansion slot
PCI-E slot 1 x PCI-E X16 graphics card slot
1xPCI-E X1 slot
PCI slot 2 x PCI slot
Storage interface 4×SATA II interface

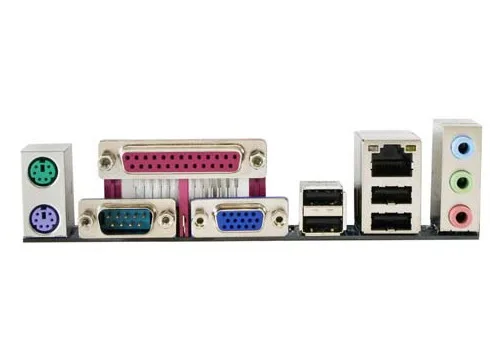

I/O interface
USB interface 8×USB2.0 interface
External port 1 x VGA port
PS/2 Interface PS/2 Mouse, PS/2 Keyboard Interface
Parallel port serial port 1 serial port, 1 parallel port
Power Jack A 4-pin, 24-pin power connector
Other interfaces 1×RJ45 network interface
audio port
Plate type
Main board type Micro ATX board type
Dimensions 24.4×19.4cm
Buyer Tips
(1)We promise that all products are tested before shipping!
(2) Our shipping method is free shipping by China post air mail, arrive time is 15-60days,some far country need more than 60days , Seller is not responsible for delivery time, It is provided by the carrier, excluding Holidays, and may vary with package and destination. If delivery is delayed or items are damaged in transit, please email us
(3) If the products not working when you received it , there could be many reason.(please tell us in time by email with your tested pictures or message online,even video )Before installing, you must make sure others parts from your computer 100% work, otherwise it will cause my product don’t work. Sometimes it will also damage my products.
(4) The products easy to damage during the transport, so please open and check the box and product when you get the goods, if the box is ruined to different shape, please take a photo and evidence for the damaged box, and then ask the postman to confirm the situation. In this way, when you give me your evidence, we can ask for the shipping company to compensate us. This is important and will protect our profit.
